بسم الله الرحمن الرحيم
عزيزي
اسم العيب وطريقة العلاج

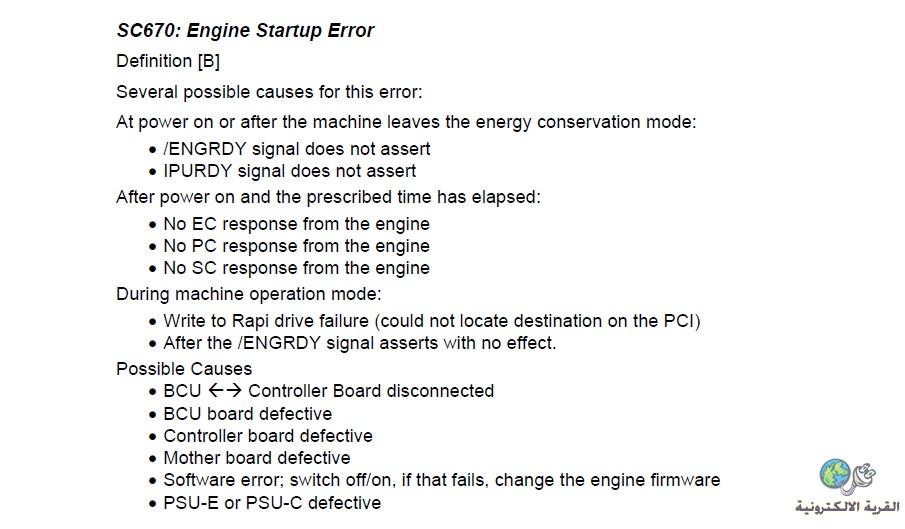

[B]SC670: Engine Startup Error
Definition
Several possible causes for this error:
At power on or after the machine leaves the energy conservation mode:
• /ENGRDY signal does not assert
• IPURDY signal does not assert
After power on and the prescribed time has elapsed:
• No EC response from the engine
• No PC response from the engine
• No SC response from the engine
During machine operation mode:
• Write to Rapi drive failure (could not locate destination on the PCI)
• After the /ENGRDY signal asserts with no effect.
Possible Causes
• BCU ! Controller Board disconnected
• BCU board defective
• Controller board defective
• Mother board defective
• Software error; switch off/on, if that fails, change the engine firmware
• PSU-E or PSU-C defective
الاحتمالات
1- عيب توصيل الجاكات اي السوكيت أو تركيب غير صحيح
في وحدة BCU Controller Board
2- عيب أو تلف في بوردة BCU board
3- عيب أو تلف في بوردة Controller board
4- عيب أو تلف في البوردة الرئيسية للماكينة Mother board
5- تحديث برنامج الفيرم وير للمحرك the engine firmware
6- عيب أو تلف في البورد الأولي PSU-E (POWER SUPPLY UNIT-ENGINE) أو الثانية PSU-C (POWER SUPPLY UNIT-CONTROLLER)
