الpic 16fxxx
|
| اعلانات |
|
|||||
|
| اعلانات اضافية ( قم بتسجيل الدخول لاخفائها ) | |||
|
|
|
|||||
|
|
|
|||||

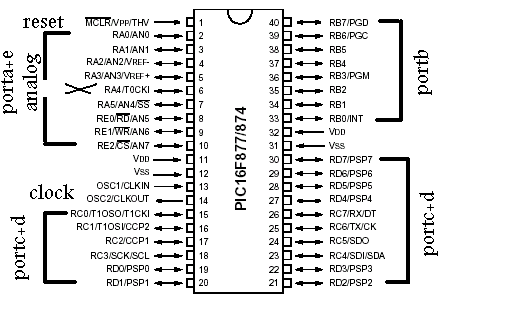

تفضل:  ساوضح معاني: RA0/AN0 RA0 Digital I/O AN0 Analog input 0 _________________ RA1/AN1 RA1 Digital I/O AN1 Analog input 1 _____________________ RA2/AN2/VREF- RA2 Digital I/O AN2 Analog input 2 VREF- A/D reference voltage (low) input __________________________________ RA3/AN3/VREF+ RA3 Digital I/O AN3 Analog input 3 VREF+ A/D reference voltage (high) input _____________________________________ RA4/T0CKI RA4 Digital I/O T0CKI Timer 0 external clock input ___________________________________ RA5/AN4/SS/LVDIN RA5 Digital I/O AN4 Analog input 4 SS SPI Slave Select input _______________________________ RA6 Digital I/O =========================== RB0/INT0 RB0 Digital I/O INT0 External interrupt 0 _________________________________ RB1/INT1 RB1 Digital I/O INT1 External interrupt 1 ________________________ RB2/INT2 RB2 Digital I/O INT2 External interrupt 2 ________________________ RB3/CCP2 RB3 Digital I/O CCP2 Capture 2 input, compare 2, and PWM2 output ___________________________________________ RB4 Digital I/O, interrupt on change pin ____________________________________ RB5/PGM RB5 Digital I/O, interrupt on change pin PGM Low-voltage ICSP programming pin _________________________________ RB6/PGC RB6 Digital I/O, interrupt on change pin PGC In-circuit debugger and ICSP programming pin __________________________________ RB7/PGD RB7 Digital I/O, interrupt on change pin PGD In-circuit debugger and ICSP programming pin ============================ RC0/T1OSO/T1CKI RC0 Digital I/O T1OSO Timer 1 oscillator output T1CKI Timer 1/Timer 3 external clock input ______________________________ RC1/T1OSI/CCP2 RC1 Digital I/O T1OSI Timer 1 oscillator input CCP2 Capture 2 input, Compare 2 and PWM2 output ____________________________ RC2/CCP1 RC2 Digital I/O CCP1 Capture 1 input, Compare 1 and PWM1 output ____________________________ RC3/SCK/SCL RC3 Digital I/O SCK Synchronous serial clock input/output for SPI SCL Synchronous serial clock input/output for I2C ____________________________ RC4/SDI/SDA RC4 Digital I/O SDI SPI data in SDA I2C data I/O ________________________ RC5/SDO RC5 Digital I/O SDO SPI data output ___________________ RC6/TX/CK RC6 Digital I/O TX USART transmit pin CK USART synchronous clock pin ____________________ RC7/RX/DT RC7 Digital I/O RX USART receive pin DT USART synchronous data pin ================== RD0/PSP0 RD0 Digital I/O PSP0 Parallel slave port bit 0 ____________________________ RD1/PSP1 RD1 Digital I/O PSP1 Parallel slave port bit 1 _______________________ RD2/PSP2 RD2 Digital I/O PSP2 Parallel slave port bit 2 _____________________ RD3/PSP3 RD3 Digital I/O PSP3 Parallel slave port bit 3 ______________________ RD4/PSP4 RD4 Digital I/O PSP4 Parallel slave port bit 4 _______________________ RD5/PSP5 RD5 Digital I/O PSP5 Parallel slave port bit 5 ________________________ RD6/PSP6 RD6 Digital I/O PSP6 Parallel slave port bit 6 ______________________ RD7/PSP7 RD7 Digital I/O PSP7 Parallel slave port bit 7 ================== RE0/RD/AN5 RE0 Digital I/O RD Parallel slave port read control pin AN5 Analog input 5 _________________________ RE1/WR/ AN6 RE1 Digital I/O WR Parallel slave port write control pin AN6 Analog input 6 ________________________ RE2/CS/AN7 RE2 Digital I/O CS Parallel slave port CS AN7 Analog input 7 ------------------------------ |
