TFT LCD
|
| اعلانات |
|
||||||
اليك هذا المشروع ..  وهذا فيديو للتجربه .. https://youtu.be/iSIKrlfwsLE وهذا الكود الخاص بالتحكم وتعريف شاشه TFT ......... كود:
#include <stdio.h>
#include <stdlib.h>
#include <xc.h>
#include <pic16f887.h>
#pragma config FOSC = HS
#pragma config WDTE = OFF
#pragma config PWRTE = OFF
#pragma config MCLRE = OFF
#pragma config CP = OFF
#pragma config CPD = OFF
#pragma config BOREN = OFF
#pragma config IESO = OFF
#pragma config FCMEN = OFF
#pragma config LVP = OFF
#pragma config BOR4V = BOR40V
#pragma config WRT = OFF
#define V 128
#define H 160
#define ST7735_NOP 0x00
#define ST7735_SWRESET 0x01
#define ST7735_RDDID 0x04
#define ST7735_RDDST 0x09
#define ST7735_SLPIN 0x10
#define ST7735_SLPOUT 0x11
#define ST7735_PTLON 0x12
#define ST7735_NORON 0x13
#define ST7735_INVOFF 0x20
#define ST7735_INVON 0x21
#define ST7735_DISPOFF 0x28
#define ST7735_DISPON 0x29
#define ST7735_CASET 0x2A
#define ST7735_RASET 0x2B
#define ST7735_RAMWR 0x2C
#define ST7735_RAMRD 0x2E
#define ST7735_PTLAR 0x30
#define ST7735_COLMOD 0x3A
#define ST7735_MADCTL 0x36
#define ST7735_FRMCTR1 0xB1
#define ST7735_FRMCTR2 0xB2
#define ST7735_FRMCTR3 0xB3
#define ST7735_INVCTR 0xB4
#define ST7735_DISSET5 0xB6
#define ST7735_PWCTR1 0xC0
#define ST7735_PWCTR2 0xC1
#define ST7735_PWCTR3 0xC2
#define ST7735_PWCTR4 0xC3
#define ST7735_PWCTR5 0xC4
#define ST7735_VMCTR1 0xC5
#define ST7735_RDID1 0xDA
#define ST7735_RDID2 0xDB
#define ST7735_RDID3 0xDC
#define ST7735_RDID4 0xDD
#define ST7735_PWCTR6 0xFC
#define ST7735_GMCTRP1 0xE0
#define ST7735_GMCTRN1 0xE1
// Color definitions
#define BLACK 0x0000
#define BLUE 0x001F
#define RED 0xF800
#define GREEN 0x0700
#define CYAN 0x07FF
#define MAGENTA 0xF81F
#define YELLOW 0xFFE0
#define WHITE 0xFFFF
#define CS 0b00000001 //Low = select, High = deselect.
#define RE 0b00000010 //High = normal, Low = reset.
#define A0 0b00000100 //Low = Command, High = Data.
const char font[255][5] = {
{0x00, 0x00, 0x00, 0x00, 0x00},
{0x3E, 0x5B, 0x4F, 0x5B, 0x3E},
{0x3E, 0x6B, 0x4F, 0x6B, 0x3E},
{0x1C, 0x3E, 0x7C, 0x3E, 0x1C},
{0x18, 0x3C, 0x7E, 0x3C, 0x18},
{0x1C, 0x57, 0x7D, 0x57, 0x1C},
{0x1C, 0x5E, 0x7F, 0x5E, 0x1C},
{0x00, 0x18, 0x3C, 0x18, 0x00},
{0xFF, 0xE7, 0xC3, 0xE7, 0xFF},
{0x00, 0x18, 0x24, 0x18, 0x00},
{0xFF, 0xE7, 0xDB, 0xE7, 0xFF},
{0x30, 0x48, 0x3A, 0x06, 0x0E},
{0x26, 0x29, 0x79, 0x29, 0x26},
{0x40, 0x7F, 0x05, 0x05, 0x07},
{0x40, 0x7F, 0x05, 0x25, 0x3F},
{0x5A, 0x3C, 0xE7, 0x3C, 0x5A},
{0x7F, 0x3E, 0x1C, 0x1C, 0x08},
{0x08, 0x1C, 0x1C, 0x3E, 0x7F},
{0x14, 0x22, 0x7F, 0x22, 0x14},
{0x5F, 0x5F, 0x00, 0x5F, 0x5F},
{0x06, 0x09, 0x7F, 0x01, 0x7F},
{0x00, 0x66, 0x89, 0x95, 0x6A},
{0x60, 0x60, 0x60, 0x60, 0x60},
{0x94, 0xA2, 0xFF, 0xA2, 0x94},
{0x08, 0x04, 0x7E, 0x04, 0x08},
{0x10, 0x20, 0x7E, 0x20, 0x10},
{0x08, 0x08, 0x2A, 0x1C, 0x08},
{0x08, 0x1C, 0x2A, 0x08, 0x08},
{0x1E, 0x10, 0x10, 0x10, 0x10},
{0x0C, 0x1E, 0x0C, 0x1E, 0x0C},
{0x30, 0x38, 0x3E, 0x38, 0x30},
{0x06, 0x0E, 0x3E, 0x0E, 0x06},
{0x00, 0x00, 0x00, 0x00, 0x00},
{0x00, 0x00, 0x5F, 0x00, 0x00},
{0x00, 0x07, 0x00, 0x07, 0x00},
{0x14, 0x7F, 0x14, 0x7F, 0x14},
{0x24, 0x2A, 0x7F, 0x2A, 0x12},
{0x23, 0x13, 0x08, 0x64, 0x62},
{0x36, 0x49, 0x56, 0x20, 0x50},
{0x00, 0x08, 0x07, 0x03, 0x00},
{0x00, 0x1C, 0x22, 0x41, 0x00},
{0x00, 0x41, 0x22, 0x1C, 0x00},
{0x2A, 0x1C, 0x7F, 0x1C, 0x2A},
{0x08, 0x08, 0x3E, 0x08, 0x08},
{0x00, 0x80, 0x70, 0x30, 0x00},
{0x08, 0x08, 0x08, 0x08, 0x08},
{0x00, 0x00, 0x60, 0x60, 0x00},
{0x20, 0x10, 0x08, 0x04, 0x02},
{0x3E, 0x51, 0x49, 0x45, 0x3E},
{0x00, 0x42, 0x7F, 0x40, 0x00},
{0x72, 0x49, 0x49, 0x49, 0x46},
{0x21, 0x41, 0x49, 0x4D, 0x33},
{0x18, 0x14, 0x12, 0x7F, 0x10},
{0x27, 0x45, 0x45, 0x45, 0x39},
{0x3C, 0x4A, 0x49, 0x49, 0x31},
{0x41, 0x21, 0x11, 0x09, 0x07},
{0x36, 0x49, 0x49, 0x49, 0x36},
{0x46, 0x49, 0x49, 0x29, 0x1E},
{0x00, 0x00, 0x14, 0x00, 0x00},
{0x00, 0x40, 0x34, 0x00, 0x00},
{0x00, 0x08, 0x14, 0x22, 0x41},
{0x14, 0x14, 0x14, 0x14, 0x14},
{0x00, 0x41, 0x22, 0x14, 0x08},
{0x02, 0x01, 0x59, 0x09, 0x06},
{0x3E, 0x41, 0x5D, 0x59, 0x4E},
{0x7C, 0x12, 0x11, 0x12, 0x7C},
{0x7F, 0x49, 0x49, 0x49, 0x36},
{0x3E, 0x41, 0x41, 0x41, 0x22},
{0x7F, 0x41, 0x41, 0x41, 0x3E},
{0x7F, 0x49, 0x49, 0x49, 0x41},
{0x7F, 0x09, 0x09, 0x09, 0x01},
{0x3E, 0x41, 0x41, 0x51, 0x73},
{0x7F, 0x08, 0x08, 0x08, 0x7F},
{0x00, 0x41, 0x7F, 0x41, 0x00},
{0x20, 0x40, 0x41, 0x3F, 0x01},
{0x7F, 0x08, 0x14, 0x22, 0x41},
{0x7F, 0x40, 0x40, 0x40, 0x40},
{0x7F, 0x02, 0x1C, 0x02, 0x7F},
{0x7F, 0x04, 0x08, 0x10, 0x7F},
{0x3E, 0x41, 0x41, 0x41, 0x3E},
{0x7F, 0x09, 0x09, 0x09, 0x06},
{0x3E, 0x41, 0x51, 0x21, 0x5E},
{0x7F, 0x09, 0x19, 0x29, 0x46},
{0x26, 0x49, 0x49, 0x49, 0x32},
{0x03, 0x01, 0x7F, 0x01, 0x03},
{0x3F, 0x40, 0x40, 0x40, 0x3F},
{0x1F, 0x20, 0x40, 0x20, 0x1F},
{0x3F, 0x40, 0x38, 0x40, 0x3F},
{0x63, 0x14, 0x08, 0x14, 0x63},
{0x03, 0x04, 0x78, 0x04, 0x03},
{0x61, 0x59, 0x49, 0x4D, 0x43},
{0x00, 0x7F, 0x41, 0x41, 0x41},
{0x02, 0x04, 0x08, 0x10, 0x20},
{0x00, 0x41, 0x41, 0x41, 0x7F},
{0x04, 0x02, 0x01, 0x02, 0x04},
{0x40, 0x40, 0x40, 0x40, 0x40},
{0x00, 0x03, 0x07, 0x08, 0x00},
{0x20, 0x54, 0x54, 0x78, 0x40},
{0x7F, 0x28, 0x44, 0x44, 0x38},
{0x38, 0x44, 0x44, 0x44, 0x28},
{0x38, 0x44, 0x44, 0x28, 0x7F},
{0x38, 0x54, 0x54, 0x54, 0x18},
{0x00, 0x08, 0x7E, 0x09, 0x02},
{0x18, 0xA4, 0xA4, 0x9C, 0x78},
{0x7F, 0x08, 0x04, 0x04, 0x78},
{0x00, 0x44, 0x7D, 0x40, 0x00},
{0x20, 0x40, 0x40, 0x3D, 0x00},
{0x7F, 0x10, 0x28, 0x44, 0x00},
{0x00, 0x41, 0x7F, 0x40, 0x00},
{0x7C, 0x04, 0x78, 0x04, 0x78},
{0x7C, 0x08, 0x04, 0x04, 0x78},
{0x38, 0x44, 0x44, 0x44, 0x38},
{0xFC, 0x18, 0x24, 0x24, 0x18},
{0x18, 0x24, 0x24, 0x18, 0xFC},
{0x7C, 0x08, 0x04, 0x04, 0x08},
{0x48, 0x54, 0x54, 0x54, 0x24},
{0x04, 0x04, 0x3F, 0x44, 0x24},
{0x3C, 0x40, 0x40, 0x20, 0x7C},
{0x1C, 0x20, 0x40, 0x20, 0x1C},
{0x3C, 0x40, 0x30, 0x40, 0x3C},
{0x44, 0x28, 0x10, 0x28, 0x44},
{0x4C, 0x90, 0x90, 0x90, 0x7C},
{0x44, 0x64, 0x54, 0x4C, 0x44},
{0x00, 0x08, 0x36, 0x41, 0x00},
{0x00, 0x00, 0x77, 0x00, 0x00},
{0x00, 0x41, 0x36, 0x08, 0x00},
{0x02, 0x01, 0x02, 0x04, 0x02},
{0x3C, 0x26, 0x23, 0x26, 0x3C},
{0x1E, 0xA1, 0xA1, 0x61, 0x12},
{0x3A, 0x40, 0x40, 0x20, 0x7A},
{0x38, 0x54, 0x54, 0x55, 0x59},
{0x21, 0x55, 0x55, 0x79, 0x41},
{0x21, 0x54, 0x54, 0x78, 0x41},
{0x21, 0x55, 0x54, 0x78, 0x40},
{0x20, 0x54, 0x55, 0x79, 0x40},
{0x0C, 0x1E, 0x52, 0x72, 0x12},
{0x39, 0x55, 0x55, 0x55, 0x59},
{0x39, 0x54, 0x54, 0x54, 0x59},
{0x39, 0x55, 0x54, 0x54, 0x58},
{0x00, 0x00, 0x45, 0x7C, 0x41},
{0x00, 0x02, 0x45, 0x7D, 0x42},
{0x00, 0x01, 0x45, 0x7C, 0x40},
{0xF0, 0x29, 0x24, 0x29, 0xF0},
{0xF0, 0x28, 0x25, 0x28, 0xF0},
{0x7C, 0x54, 0x55, 0x45, 0x00},
{0x20, 0x54, 0x54, 0x7C, 0x54},
{0x7C, 0x0A, 0x09, 0x7F, 0x49},
{0x32, 0x49, 0x49, 0x49, 0x32},
{0x32, 0x48, 0x48, 0x48, 0x32},
{0x32, 0x4A, 0x48, 0x48, 0x30},
{0x3A, 0x41, 0x41, 0x21, 0x7A},
{0x3A, 0x42, 0x40, 0x20, 0x78},
{0x00, 0x9D, 0xA0, 0xA0, 0x7D},
{0x39, 0x44, 0x44, 0x44, 0x39},
{0x3D, 0x40, 0x40, 0x40, 0x3D},
{0x3C, 0x24, 0xFF, 0x24, 0x24},
{0x48, 0x7E, 0x49, 0x43, 0x66},
{0x2B, 0x2F, 0xFC, 0x2F, 0x2B},
{0xFF, 0x09, 0x29, 0xF6, 0x20},
{0xC0, 0x88, 0x7E, 0x09, 0x03},
{0x20, 0x54, 0x54, 0x79, 0x41},
{0x00, 0x00, 0x44, 0x7D, 0x41},
{0x30, 0x48, 0x48, 0x4A, 0x32},
{0x38, 0x40, 0x40, 0x22, 0x7A},
{0x00, 0x7A, 0x0A, 0x0A, 0x72},
{0x7D, 0x0D, 0x19, 0x31, 0x7D},
{0x26, 0x29, 0x29, 0x2F, 0x28},
{0x26, 0x29, 0x29, 0x29, 0x26},
{0x30, 0x48, 0x4D, 0x40, 0x20},
{0x38, 0x08, 0x08, 0x08, 0x08},
{0x08, 0x08, 0x08, 0x08, 0x38},
{0x2F, 0x10, 0xC8, 0xAC, 0xBA},
{0x2F, 0x10, 0x28, 0x34, 0xFA},
{0x00, 0x00, 0x7B, 0x00, 0x00},
{0x08, 0x14, 0x2A, 0x14, 0x22},
{0x22, 0x14, 0x2A, 0x14, 0x08},
{0xAA, 0x00, 0x55, 0x00, 0xAA},
{0xAA, 0x55, 0xAA, 0x55, 0xAA},
{0x00, 0x00, 0x00, 0xFF, 0x00},
{0x10, 0x10, 0x10, 0xFF, 0x00},
{0x14, 0x14, 0x14, 0xFF, 0x00},
{0x10, 0x10, 0xFF, 0x00, 0xFF},
{0x10, 0x10, 0xF0, 0x10, 0xF0},
{0x14, 0x14, 0x14, 0xFC, 0x00},
{0x14, 0x14, 0xF7, 0x00, 0xFF},
{0x00, 0x00, 0xFF, 0x00, 0xFF},
{0x14, 0x14, 0xF4, 0x04, 0xFC},
{0x14, 0x14, 0x17, 0x10, 0x1F},
{0x10, 0x10, 0x1F, 0x10, 0x1F},
{0x14, 0x14, 0x14, 0x1F, 0x00},
{0x10, 0x10, 0x10, 0xF0, 0x00},
{0x00, 0x00, 0x00, 0x1F, 0x10},
{0x10, 0x10, 0x10, 0x1F, 0x10},
{0x10, 0x10, 0x10, 0xF0, 0x10},
{0x00, 0x00, 0x00, 0xFF, 0x10},
{0x10, 0x10, 0x10, 0x10, 0x10},
{0x10, 0x10, 0x10, 0xFF, 0x10},
{0x00, 0x00, 0x00, 0xFF, 0x14},
{0x00, 0x00, 0xFF, 0x00, 0xFF},
{0x00, 0x00, 0x1F, 0x10, 0x17},
{0x00, 0x00, 0xFC, 0x04, 0xF4},
{0x14, 0x14, 0x17, 0x10, 0x17},
{0x14, 0x14, 0xF4, 0x04, 0xF4},
{0x00, 0x00, 0xFF, 0x00, 0xF7},
{0x14, 0x14, 0x14, 0x14, 0x14},
{0x14, 0x14, 0xF7, 0x00, 0xF7},
{0x14, 0x14, 0x14, 0x17, 0x14},
{0x10, 0x10, 0x1F, 0x10, 0x1F},
{0x14, 0x14, 0x14, 0xF4, 0x14},
{0x10, 0x10, 0xF0, 0x10, 0xF0},
{0x00, 0x00, 0x1F, 0x10, 0x1F},
{0x00, 0x00, 0x00, 0x1F, 0x14},
{0x00, 0x00, 0x00, 0xFC, 0x14},
{0x00, 0x00, 0xF0, 0x10, 0xF0},
{0x10, 0x10, 0xFF, 0x10, 0xFF},
{0x14, 0x14, 0x14, 0xFF, 0x14},
{0x10, 0x10, 0x10, 0x1F, 0x00},
{0x00, 0x00, 0x00, 0xF0, 0x10},
{0xFF, 0xFF, 0xFF, 0xFF, 0xFF},
{0xF0, 0xF0, 0xF0, 0xF0, 0xF0},
{0xFF, 0xFF, 0xFF, 0x00, 0x00},
{0x00, 0x00, 0x00, 0xFF, 0xFF},
{0x0F, 0x0F, 0x0F, 0x0F, 0x0F},
{0x38, 0x44, 0x44, 0x38, 0x44},
{0x7C, 0x2A, 0x2A, 0x3E, 0x14},
{0x7E, 0x02, 0x02, 0x06, 0x06},
{0x02, 0x7E, 0x02, 0x7E, 0x02},
{0x63, 0x55, 0x49, 0x41, 0x63},
{0x38, 0x44, 0x44, 0x3C, 0x04},
{0x40, 0x7E, 0x20, 0x1E, 0x20},
{0x06, 0x02, 0x7E, 0x02, 0x02},
{0x99, 0xA5, 0xE7, 0xA5, 0x99},
{0x1C, 0x2A, 0x49, 0x2A, 0x1C},
{0x4C, 0x72, 0x01, 0x72, 0x4C},
{0x30, 0x4A, 0x4D, 0x4D, 0x30},
{0x30, 0x48, 0x78, 0x48, 0x30},
{0xBC, 0x62, 0x5A, 0x46, 0x3D},
{0x3E, 0x49, 0x49, 0x49, 0x00},
{0x7E, 0x01, 0x01, 0x01, 0x7E},
{0x2A, 0x2A, 0x2A, 0x2A, 0x2A},
{0x44, 0x44, 0x5F, 0x44, 0x44},
{0x40, 0x51, 0x4A, 0x44, 0x40},
{0x40, 0x44, 0x4A, 0x51, 0x40},
{0x00, 0x00, 0xFF, 0x01, 0x03},
{0xE0, 0x80, 0xFF, 0x00, 0x00},
{0x08, 0x08, 0x6B, 0x6B, 0x08},
{0x36, 0x12, 0x36, 0x24, 0x36},
{0x06, 0x0F, 0x09, 0x0F, 0x06},
{0x00, 0x00, 0x18, 0x18, 0x00},
{0x00, 0x00, 0x10, 0x10, 0x00},
{0x30, 0x40, 0xFF, 0x01, 0x01},
{0x00, 0x1F, 0x01, 0x01, 0x1E},
{0x00, 0x19, 0x1D, 0x17, 0x12},
{0x00, 0x3C, 0x3C, 0x3C, 0x3C},
{0x00, 0x00, 0x00, 0x00, 0x00}
};
void delay(int x){
for(int j=0;j<x;j++);
}
void sendcomand(char input){
PORTD &= ~A0;
PORTD &= ~CS;
SSPBUF = input;
for(int j=0;j<1;j++);
PORTD |= CS;
}
void senddata(char input){
PORTD |= A0;
PORTD &= ~CS;
SSPBUF = input;
for(int j=0;j<1;j++);
PORTD |= CS;
}
void SetPix(char x, char y, int color){
char Low = color & 0x00ff;
color >>= 8;
char Hig = color;
sendcomand(ST7735_CASET); // Column addr set
senddata(0x00);
senddata(x); // XSTART
senddata(0x00);
senddata(x+1); // XEND
sendcomand(ST7735_RASET); // Row addr set
senddata(0x00);
senddata(y); // YSTART
senddata(0x00);
senddata(y+1); // YEND
sendcomand(ST7735_RAMWR);
senddata(Low);
senddata(Hig);
}
void clean(int color){
char Low = color & 0x00ff;
color >>= 8;
char Hig = color;
sendcomand(ST7735_CASET); // Column addr set
senddata(0x00);
senddata(0); // XSTART
senddata(0x00);
senddata(V); // XEND
sendcomand(ST7735_RASET); // Row addr set
senddata(0x00);
senddata(0); // YSTART
senddata(0x00);
senddata(H); // YEND
sendcomand(ST7735_RAMWR);
for(char x=0;x<V;x++){
for(char y=0;y<H;y++){
senddata(Low);
senddata(Hig);
}
}
}
void init(){
PORTD &= ~CS;
delay(0);
PORTD |= RE;
delay(100);
PORTD &= ~RE;
delay(100);
PORTD |= RE;
delay(10000);
sendcomand(ST7735_SWRESET); // 1: Software reset, 0 args, w/delay 150ms 0x01
delay(1000);
sendcomand(ST7735_SLPOUT); // 2: Out of sleep mode, 0 args, w/delay 500ms 0x11
delay(10000);
sendcomand(ST7735_FRMCTR1); // 3: Frame rate ctrl - normal mode) 3 args: 0xb1
senddata(0x01); senddata(0x2C); senddata(0x2D); // Rate = fosc/(1x2+40) * (LINE+2C+2D)
sendcomand(ST7735_FRMCTR2); // 4: Frame rate control - idle mode) 3 args: 0xb2
senddata(0x01); senddata(0x2C); senddata(0x2D); // Rate = fosc/(1x2+40) * (LINE+2C+2D)
sendcomand(ST7735_FRMCTR3); // 5: Frame rate ctrl - partial mode) 6 args: 0xb3
senddata(0x01); senddata(0x2C); senddata(0x2D); // Dot inversion mode
senddata(0x01); senddata(0x2C); senddata(0x2D); // Line inversion mode
sendcomand(ST7735_INVCTR); // 6: Display inversion ctrl) 1 arg) no delay: 0xb4
senddata(0x07); // No inversion
sendcomand(ST7735_PWCTR1); // 7: Power control) 3 args) no delay: 0xc0
senddata(0xA2);
senddata(0x02); // -4.6V
senddata(0x84); // AUTO mode
sendcomand(ST7735_PWCTR2); // 8: Power control) 1 arg) no delay: 0xc1
senddata(0xC5); // VGH25 = 2.4C VGSEL = -10 VGH = 3 * AVDD
sendcomand(ST7735_PWCTR3); // 9: Power control) 2 args) no delay: 0xc2
senddata(0x0A); // Opamp current small
senddata(0x00); // Boost frequency
sendcomand(ST7735_PWCTR4); // 10: Power control) 2 args) no delay:
senddata(0x8A); // BCLK/2) Opamp current small & Medium low
senddata(0x2A);
sendcomand(ST7735_PWCTR5); // 11: Power control) 2 args) no delay:
senddata(0x8A); senddata(0xEE);
sendcomand(ST7735_VMCTR1); // 12: Power control) 1 arg) no delay:
senddata(0x0E);
sendcomand(ST7735_INVOFF); // 13: Don't invert display) no args) no delay 0x20
sendcomand(ST7735_MADCTL); // 14: Memory access control (directions)) 1 arg:
senddata(0xC8); // row addr/col addr); bottom to top refresh
sendcomand(ST7735_COLMOD); // 15: set color mode); 1 arg); no delay:
senddata(0x05); // 16-bit color
sendcomand(ST7735_NORON); // 3: Normal display on, no args, w/delay 10ms 0x13
delay(100);
sendcomand(ST7735_DISPON); // 4: Main screen turn on, no args w/delay 100ms 0x29
delay(1000);
}
void ASCII(char x, char y, int color, int background, char letter, char size){
char data;
for(char q=0;q<5;q++){
data = font[letter][q];
for(char z=0;z<8*size;z++){
if((data&1)!=0){
for(char d=0; d<size;d++){
for(char b=0; b<size;b++){
SetPix(x+(q*size)+d,y+(z*size)+b,color);
}
}
}else{
for(char d=0; d<size;d++){
for(char b=0; b<size;b++){
SetPix(x+(q*size)+d,y+(z*size)+b,background);
}
}
}
data>>=1;
}
}
}
void prints(char x, char y, int color, int background, char * message, char size){
while (*message){
ASCII(x,y,color,background,*message++, size);
x+=6*size;
if(x>120){
x=0;
y+=8*size;
}
}
}
void integerprint(char x, char y, int color, int background,int integer, char size){
unsigned char tenthousands,thousands,hundreds,tens,ones;
tenthousands = integer / 10000;
ASCII(x,y,color,background,tenthousands+48, size);
thousands = ((integer - tenthousands*10000)) / 1000;
x+=6;
ASCII(x,y,color,background,thousands+48, size);
hundreds = (((integer - tenthousands*10000) - thousands*1000)-1) / 100;
x+=6;
ASCII(x,y,color,background,hundreds+48, size);
tens=(integer%100)/10;
x+=6;
ASCII(x,y,color,background,tens+48, size);
ones=integer%10;
x+=6;
ASCII(x,y,color,background,ones+48, size);
}
void box(char x, char y, char high, char breth, int color){
for(char s = y; s < y+high; s++){
for(char d = x; d < x+breth; d++){
SetPix(d,s,color);
}
}
}
void interrupt test(void){
}
int main() {
SSPSTAT = 0b01000000;
SSPCON = 0b00100000;
SSPCON2 = 0b00000000;
TRISC = 0;
TRISD = 0;
PORTD |= 0b00001000;
init();
clean(BLACK);
prints(0,0,0xffff,BLACK," ITC ", 1);//"CO2 PROFE OF CONCEPT");
box(20, 20, 10, 80, 0xff00);
char h = 0;
char g=1;
char f=0;
char fold=0;
int l;
box(22, 22, 6, f, BLUE);
prints(15,32,0xffff,BLACK,"LOW MEDIUM HIGH", 1);
prints(0,50,0xffff,BLACK,"THANKS TO ADAFRUIT ST7735 LIBERYS, THIS IS AN ARDUINO CODE TRANSLATED TO PIC.", 1);
prints(0,81,0xffff,BLACK,"1",1);
prints(10,81,0xffff,BLACK,"2",2);
prints(22,81,0xffff,BLACK,"3",3);
prints(40,81,0xffff,BLACK,"4",4);
prints(40,110,0xffff,BLACK,"COLOR TESTING:", 1);
while(1==1){
integerprint(46, 10, 0x0005, BLACK,h,1);
if(f!=fold){
box(22, 22, 6, f, h);
box(22+f, 22, 6, 76-f, RED);
fold=f;
}
h = h + g;
if(h>75){
g = -1;
}else if(h<1){
g = 1;
}
f = h;
l++;
if(l>0x7fff){
l=0;
}
box(80, 120, 40, 40, l);
integerprint(85, 130, BLACK, l,l,1);
box(40, 120, 40, 40, 0xffff-l);
integerprint(44, 130, BLACK, 0xffff-l,0x7fff-l,1);
}
}
مصدر الموضوع ... https://sites.google.com/site/arduin...st7735-1-8-tft أرجو أن أكون لبيت طلبك التعديل الأخير تم بواسطة : عبدالله حجازى بتاريخ 21-05-2017 الساعة 03:43 AM |
| احصائية الشكر والاعجاب - 1 شكراً, 0 عدم اعجاب, 1 اعجاب |
محمد إلياس ( شكر العضو على هذه المشاركة )
محمد إلياس ( أعجبته المشاركة )
|
|
|
| اعلانات اضافية ( قم بتسجيل الدخول لاخفائها ) | |||
|
|
|
|||||
|

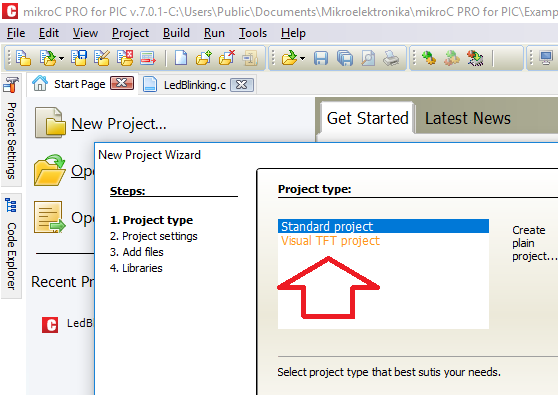

السلام عليكم أخي الكريم عبدالله : أعتقد أن الاصدار 7.01 للميكروسي أضاف إمكانية إعداد مشاريع حول هذا النوع من الشاشات :  اكتشفت هذا بعد تنصيب النسخة التي وضع رابطها الأخ رسول العراق هنا: http://www.qariya.info/vb/showpost.p...73&postcount=2 لكنني لم أقم بدراسة الموضوع كما أنني اكتفي الآن بالنسخة ديمو . أخي عبدالله أعتقد أنها معلومة ممكن تهمك بما انك تبرمج بالميكروسي. وكذلك بالنسبة الى الأخ صاحب الطلب لو كان يبحث عن الطريقة بالميكروسي.. |
| احصائية الشكر والاعجاب - 1 شكراً, 0 عدم اعجاب, 1 اعجاب |
|
عبدالله حجازى ( شكر العضو على هذه المشاركة )
عبدالله حجازى ( أعجبته المشاركة )
|
|
|
|
|||||
|
|
